Submersible pump in multi-stage construction with radial or mixed flow impellers coupled with oil or water filled, single or three phase submersible motors. These pumps are very light weight and compact in size.These pumps can be installed with HDPE/UPVC/GI pipes. They are easy to arrange and dismantle. These pumps have low power consumption and designed for optimum efficiency .Less vibration and lower noise level due to dynamically balanced rotating parts .These are deigned to withstand voltage fluctuations.Non overloading power characteristics protect the motor. These pumps also find wide usage in continuous supply of water in farming

Technical Data
Rating 3.0HP- 15.0 HP (2.2kW- 11.0kW)
Head Range 13 - 298 m
Discharge 45-500 lpm
Phase 3 Φ
Duty Type S1(Continuous)
Speed 2880 rpm
Cable 3 Core Flat
Connection DOL / Star - Delta
Temperature < 35°C
pH 6.5 - 8.5
Specific Gravity 1.004 Max
Pumping Medium Clean Water free from solids & fibre free, chemically and mechanically non aggressive

Construction Features

Motor Body Stainless Steel
Pump Casing FG200 / SS304
Impeller Bronze / SS304
Shaft SS402 / SS431
Thrust Bearing SS/Carbon Graphite
Middle Bearing Bronze/Carbon graphite
Mounting Standard NEMA
Cooling Medium Water

SPECIAL FEATURES

  • Designed for wide voltage fluctuations
  • Rewindable motor portion
  • Easy maintenance
  • High operating efficiency
  • Dynamically Balanced Rotors & Impellers ensure long life
  • Water lubricated bearings
  • Smooth and Noiseless operations
  • Low friction carbon thrust bearing
  • Carbon thrust bearing for low voltage and quick start

Applications

Dimensional Drawing


Dimensional Details

S.No Model L D A B
1 PS6R030/3 948 140 455 493
2 PS6R030/4 1338 140 455 883
3 PS6R030/5 1403 140 455 948
4 PS6R030/6 1468 140 455 1013
5 PS6R030/8 1598 140 455 1143
6 PS6R030/10 1728 140 455 1273
7 PS6R050/5 1543 140 595 948
8 PS6R050/6 1608 140 595 1013
9 PS6R050/8 1738 140 595 1143
10 PS6R050/10 1868 140 595 1273
11 PS6R050/12 1998 140 595 1403
12 PS6R050/15 2193 140 595 1598
13 PS6R050/16 2258 140 595 1663
14 PS6R060/6 1628 140 615 1013
15 PS6R060/8 1758 140 615 1143
16 PS6R060/10 1888 140 615 1273
17 PS6R060/12 2018 140 615 1403
18 PS6R075/8 1793 140 650 1143
19 PS6R075/10 1923 140 650 1273
20 PS6R075/12 2053 140 650 1403
21 PS6R075/15 2248 140 650 1598
22 PS6R075/16 2313 140 650 1663
23 PS6R075/20 2573 140 650 1923
24 PS6R075/24 2833 140 650 2183
25 PS6R075/25 2898 140 650 2248
26 PS6R100/10 1998 140 725 1273
27 PS6R100/12 2128 140 725 1403
28 PS6R100/13 2193 140 725 1468
29 PS6R100/14 2258 140 725 1533
30 PS6R100/15 2323 140 725 1598
31 PS6R100/16 2388 140 725 1663
32 PS6R100/20 2648 140 725 1923
33 PS6R100/24 2908 140 725 2183
34 PS6R100/25 2973 140 725 2248
35 PS6R100/30 3298 140 725 2573
36 PS6R125/12 2208 140 805 1403
37 PS6R125/15 2403 140 805 1598
38 PS6R125/18 2598 140 805 1793
39 PS6R125/20 2728 140 805 1923
40 PS6R125/25 3053 140 805 2248
41 PS6R125/30 3378 140 805 2573
42 PS6R150/15 2448 140 850 1598
43 PS6R150/18 2643 140 850 1793
44 PS6R150/25 3098 140 850 2248
45 PS6R150/30 3423 140 850 2573
*All dimensions are in mm

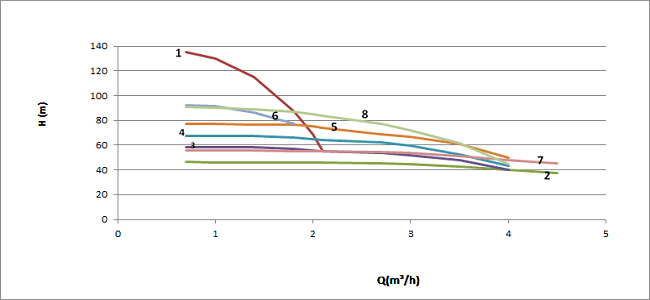

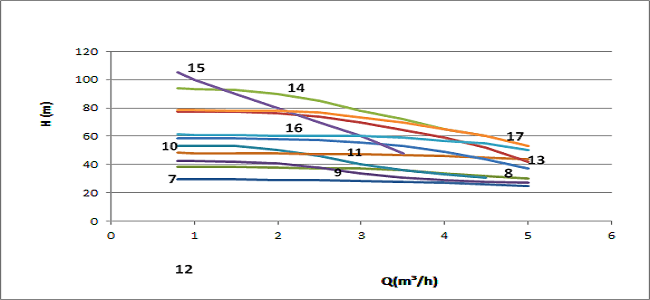

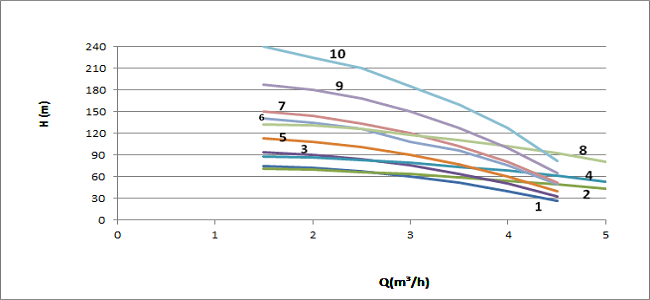

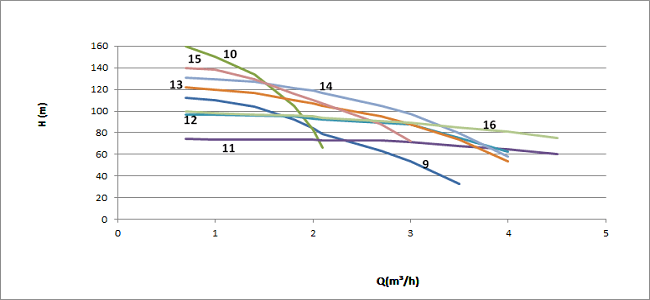

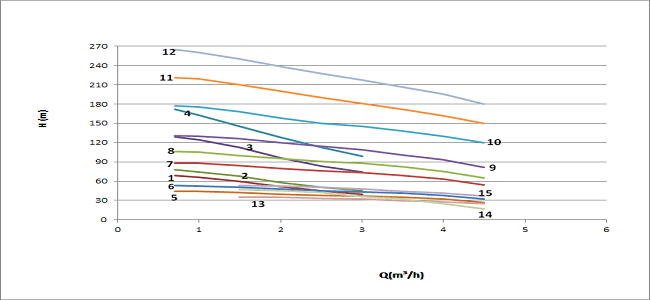

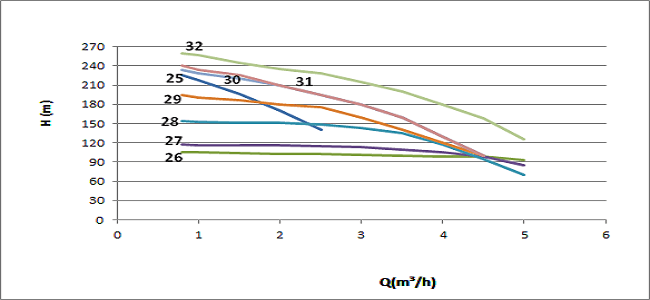

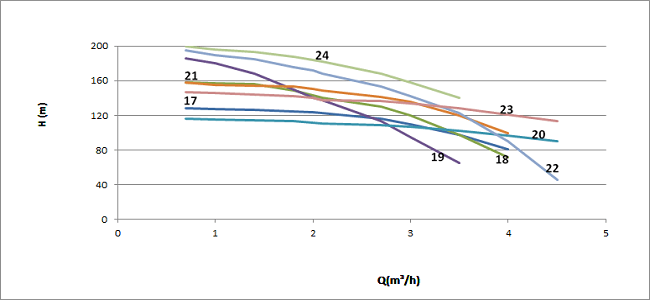

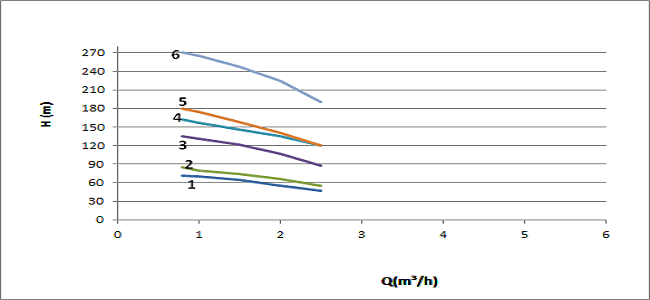

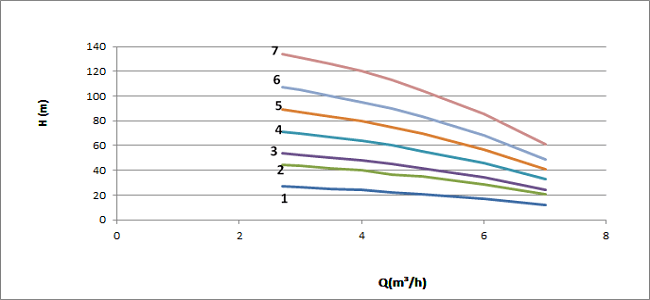

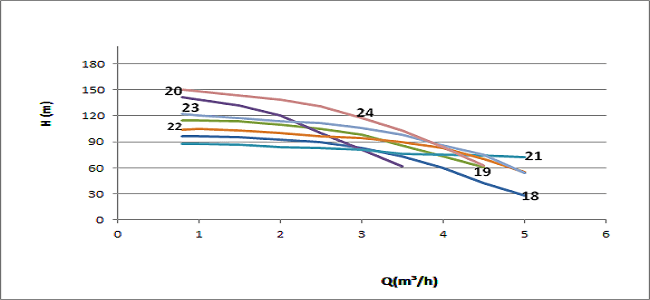

Performance Curve

View More



Performance Table

STANDARD SERIES at 380V (-15% to +6%),2880 RPM, 50Hz, A.C.Power supply
S.N MODEL KW HP Stage Del Capacity
In MM m3/hr 0 0.8 1 1.5 2 2.5 3 3.5 4 4.5 5 FL Current(A)
1 PS6RO30/08 2.2 3 8 40 H E A DI N M E T E R S 76.8 72 69.6 64.3 60 47 - - - - - 7
2 PS6RO30/09 2.2 3 9 40 90 85 80 74 66 55 - - - - - 7
3 PS6RO50/15 3.75 5 15 40 144 135 131 121 106 88.2 - - - - - 10.9
4 PS6RO60/18 4.5 6 18 40 173 162 157 146 135 120 - - - - - 13
5 PS6RO75/20 5.5 7.5 20 40 192 180 174 158 140 120 - - - - - 15.5
6 PS6RO100/30 7.5 10 30 40 288 270 265 248 225 190 - - - - - 15.5
7 PS6RO30/03 2.2 3 3 50 30 29.6 29.4 29.3 29.2 29. 28.5 28 27 26 25 7
8 PS6RO30/04 2.2 3 4 50 39 38.4 38.3 38.2 38.1 37.5 37 36 34 32 30 7
9 PS6RO30/05 2.2 3 5 50 45 42.5 42.3 42.1 41 38 34 31 29 28 27 7
10 PS6RO30/06 2.2 3 6 50 55 53.4 53.2 53 50 46 40 36 33 31 - 7.00
11 PS6RO50/05 3.75 5 5 50 49 48.2 48 47.8 47.6 47.4 47.2 47 46 45 44 10.9
12 PS6RO50/06 3.75 5 6 50 63 58.8 58.6 58.4 58.2 57.5 55.5 53 49 44 37 10.9
13 PS6RO50/08 3.75 5 8 50 87 77.6 77.4 77.2 76 74 70 64.2 59 52 42 10.9
14 PS6RO50/10 3.75 5 10 50 105 94 93.2 93 91 88 77 64 62 60 - 10.9
15 PS6RO50/12 3.75 5 12 50 120 105 100 90 80 70 60 48 - - - 10.9
16 PS6RO60/06 4.5 6 6 50 66 61.2 60.8 60.6 60.4 60.2 60 59 57 55 50 13.1
17 PS6RO60/08 4.5 6 8 50 85 78.6 78.4 78.2 78 77 73 70 65 60 53 13.1
18 PS6RO60/10 4.5 6 10 50 105 96.5 96 95.5 93 90 83 73 60 43 28 13.1
19 PS6RO60/12 4.5 6 12 50 124 115 114.5 114 110 105 98 86 73 61 - 13.1
20 PS6RO60/15 4.5 6 15 50 154 142 139 135 120 100 81 62 - - - 13.1
21 PS6RO75/08 5.5 7.5 8 50 88 88 87.5 87 84 85 81 76 75 74 72 15.8
22 PS6RO75/10 5.5 7.5 10 50 107 104 105 103 100 96 94 90 83 70 55 15.8
23 PS6RO75/12 5.5 7.5 12 50 127 122 120 118 114 112 106 98 86 75 54 15.8
24 PS6RO75/15 5.5 7.5 15 50 158 150 148 144 139 131 118 103 84 63 - 15.8
25 PS6RO75/24 5.5 7.5 24 50 242 226 218 196 170 140 - - - - - 15.8
26 PS6RO100/10 7.5 10 10 50 110 106 105 104 103 102 101 100 99 98 93 21.2
28 PS6R100/12 7.5 10 12 50 168 154 152 151.5 151 149 143 135 118 95 70 21.2
29 PS6R100/16 7.5 10 16 50 207 194 190 186 180 175 160 140 120 100 - 21.2
30 PS6R100/20 7.5 10 20 50 238 234 228 220 210 195 180 160 130 100 - 27.3
31 PS6R100/24 7.5 10 24 50 258 240 234 225 210 195 180 160 130 100 - 27.3
32 PS6R125/25 9.3 12.5 25 50 270 260 256 245 235 228 215 200 180 158 125 31.6

GOLDEN SERIES at 250V to 380V, 2880 RPM, 50Hz, A.C. Power Supply
S.N MODEL KW HP Stage Del Capacity
In MM m3/hr 0 0.70 1.00 1.50 2.00 2.50 3.00 3.50 4.00 4.50 5.00 FL Current(A)
1 PS6RO30/08 G 2.2 3 8 40 H E A DI N M E T E R S 74.2 68.9 66 60 51.3 44.6 39.5 - - - - 7
2 PS6RO30/09G 2.2 3 9 40 83.6 77.5 74.3 68 57.8 50.2 44.5 - - - - 7
3 PS6RO50/15 G 3.75 5 15 40 139 129 124 112.2 96.3 83.7 74 - - - - 11.5
4 PS6RO60/20 G 4.5 6 20 40 186 172 165 150 128 112 98.8 - - - - 13
5 PS6RO30/05 G 2.2 3 5 50 46.5 44 43.7 42 39.6 37.8 36.5 34.5 32.4 27.1 Â-/td> 7
6 PS6RO30/06 G 2.2 3 6 50 55.8 53 52.5 50.3 47.4 45.3 43.8 40.4 38.9 32.6 - 7
7 PS6RO50/10 G 3.75 5 10 50 93 88 87.5 83.8 80 76 73 68.8 63 54.2 Â 11.5
8 PS6RO60/12 G 4.5 6 12 50 112 106 105 100 95 90.8 87.6 82.6 75 65 - 13
9 PS6RO75/15G 5.5 7.5 15 50 140 131 130 126 120 114 109 101 93 81.5 - 15.5
10 PS6R100/20G 7.5 10 20 50 186 177 175 168 158 150 145 138 130 120 - 21.5
11 PS6R125/25G 9.3 12.5 25 50 233 221 219 210 200 190 181 172 162 150 - 27.5
12 PS6R150/30 G 11.3 15 30 50 279 265 260 250 238 227 217 206.8 195 180 - 32
13 PS6RO30/04 G 2.2 3 4 50 39 - - 35 34.8 33.5 31.9 29 27.5 24.7 - 7
14 PS6RO30/05 G 2.2 3 5 50 50 - - 47.1 45 41.9 36 32.1 25.3 16.4 - 7
15 PS6RO50/06G 3.75 3 6 50 58.5 - - 53 52.2 50.1 47.8 44 41.3 37.1 - 11.5
View More
GOLDEN SERIES at 250V to 380V, 2880 RPM, 50Hz, A.C. Power Supply
S.N MODEL KW HP Stage Del Capacity
In MM m3/hr 0 0.70 1.00 1.50 2.00 2.50 3.00 3.50 4.00 4.50 5.00 FL Current(A)
1 PS6RO50/08 G 3.75 5 8 50 H E A DI N M E T E R S 80 - - 75.3 72 67 60 51.4 40.5 26.2 - 11.5
2 PS6RO60/08 G 4.5 6 8 50 78 - - 71 69.6 66.9 63.8 59 54 49.3 43 11.5
3 PS6RO60/10 G 4.5 6 10 50 100 - - 94.2 90 83.8 76 64.2 50.6 32.8 - 13
4 PS6RO75/10 G 5.5 7.5 10 50 98 Â Â 88 87 83.7 80 74 68.9 62 53 15.5
5 PS6RO75/12 G 5.5 7.5 12 50 120 - - 113 108 101 90 77 60.7 39.4 - 15.5
6 PS6RO100/15 G 7.5 10 15 50 150 - - 141 135 126 109 96.2 76 49 - 21.5
7 PS6RO100/16 G 7.5 10 16 50 160 - - 151 144 134 120 103 81 52.5 - 21.5
8 PS6RO125/15 G 9.3 12.5 15 50 146 - - 132 131 126 118 111 103 93 80.5 27.5
9 PS6RO125/20 G 9.3 12.5 20 50 200 - - 188 180 168 150 128 100 65.5 - 27.5
10 PS6RO150/25G 11.3 15 25 50 250 - - 240 225 210 185 160 128 82 - 30

S.N MODEL KW HP Stage Del Capacity
In MM m3/hr 0 2.70 3.00 3.50 4.00 4.50 5.00 6.00 7.00 Â Â FL Current(A)
1 PS6RO30/03 G 2.2 3 3 50 HEAD IN METERS 30 26.8 26.2 25.2 23.9 21.8 20.9 17.1 12 - - 7
2 PS6RO50/05 G 3.75 5 5 50 50 44.7 43.7 41.9 39.9 36.5 34.8 28.4 20.4 - - 11.5
3 PS6RO60/06 G 4.5 6 6 50 60 53.7 52.4 50.3 47.8 45 41.8 34 24.4 - - 13
4 PS6RO75/08 G 5.5 7.5 7.5 50 80 71.4 69.8 67 63.8 60 55.6 45.6 32.7 - - 15.5
5 PS6R100/10 G 7.5 10 10 50 100 89.2 87.3 83.6 79.6 75 69.6 56.7 40.5 - - 21.5
6 PS6R125/12 G 9.3 12.5 12.5 50 120 107 105 100 95 90 83.4 68 49 - - 27.5
7 PS6R150/15 G 11.3 15 15 50 150 134 131 126 120 113 104 85.3 61 - - 32

PREMIUM SERIES at 180V to 400V, 2880 RPM, 50Hz, A.C. Power Supply
S.N MODEL kW HP Stage Del Capacity
In MM M3/hr 0 0.70 1.00 1.40 1.81 2.00 2.1 2.7 3.00 3.50 4.00 4.50 FL Current(A)
1 PS6RO50/15 P 3.75 5 15 40 H E A DI N M E T E R S 140 135 130 115 87.2 68.7 55 - - - - - 11.85
2 PS6RO50/05 P 3.75 5 5 50 52 46.3 46.2 46.1 46 45.9 45.7 45.5 44.5 42.7 40.3 37.5 11.85
3 PS6RO50/06 P 3.75 5 6 50 62 58.4 58.2 58 57 56 55 54 52 48 40 - 11.85
4 PS6RO50/07 P 3.75 5 7 50 72.3 67.6 67.4 67.2 66 65 64 62 59.5 52.5 43.6 - 11.85
5 PS6RO50/08 P 3.75 5 8 50 82.7 77.2 77 76.8 76.6 75 74 69 67 61 49.8 - 11.85
6 PS6RO50/10P 3.75 5 10 50 97 92 91.8 86.3 77.1 - - - - - - - 11.85
7 PS6RO60/06 P 4.5 6 6 50 62 55.8 55.6 55.4 55.2 55 54.8 54.6 54 51 48 45 14.20
8 PS6RO60/10 P 4.5 6 10 50 105 91 90 89.2 89 82.8 82.5 82 75 61.4 44.8 Â\- 14.20
9 PS6RO60/12 P 4.5 6 12 50 116 112 110 104 92.5 84 77.4 70 57.6 33 - - 14.20
10 PS6RO60/18 P 4.5 6 18 50 168 160 156 135 105 82.4 66 - - - - - 14.20
11 PS6RO75/08 P 5.5 7.5 8 50 83 74.2 74 73.8 73.6 73.4 73.2 73 71.4 68 64.5 60 14.20
12 PS6RO75/10 P 5.5 7.5 10 50 103 97 96.5 96 95.8 93.4 91.6 89 95 75 62.3 - 17.20
13 PS6RO75/12 P 5.5 7.5 12 50 126 122 120 117 117 107 103 99 90 73.6 53.8 - 17.20
14 PS6RO75/13 P 5.5 7.5 13 50 137 131 129 127 121 116 112 107 97.5 79.8 58.3 - 17.20
15 PS6RO75/15 P 5.5 7.5 15 50 146 140 138 129 116 110 100 90 72 - - - 17.20
16 PS6R100/10 P 7.5 10 10 50 104 100 98 97 96 95 93 91.2 89 85 81 75 23.00
17 PS6RO100/13 P 7.5 10 13 50 134 128 127 126 125 122 119 116 110 97.5 81 - 23.00
18 PS6RO100/16 P 7.5 10 16 50 168 158 157 156 149 143 138 131 120 98 71.7 - 23.00
19 PS6RO100/200 P 7.5 10 20 50 194 186 184 170 150 140 129 117 96 55 - - 23.10
20 PS6R125/12 P 9.3 12.5 12 50 125 116 115 114 113 112 110 109 107 102 97 90 29.60
21 PS6R125/16 P 9.3 12.5 16 50 165 158 155 154 153 150 147 143 136 120 99.7 - 29.60
22 PS6R125/20 P 9.3 12.5 20 50 210 195 188 180 176 172 160 155 140 123 90 46 29.60
23 PS6R150/15 P 11.3 15 15 50 156 147 146 144 142 140 138 137 134 128 121 113 34.00
24 PS6R150/20 P 11.3 15 20 50 207 200 196 191 188 185 175 170 150 140 - - 34.00
