6" Submersible > Mixed Flow

Download Brochure

Have Question?

About Product
Features
Applications
Dimensional Drawing
Performance Table

Submersible pump in multi-stage construction with radial or mixed flow impellers coupled with oil or water filled, single or three phase submersible motors. These pumps are very light weight and compact in size.These pumps can be installed with HDPE/UPVC/GI pipes. They are easy to arrange and dismantle. These pumps have low power consumption and designed for optimum efficiency .Less vibration and lower noise level due to dynamically balanced rotating parts .These are deigned to withstand voltage fluctuations.Non overloading power characteristics protect the motor. These pumps also find wide usage in continuous supply of water in farming

Technical Data

Rating	3.0HP- 20.0 HP (2.2kW- 15.0kW)
Head Range	8 – 250 mts
Discharge	240 – 1300 lpm
Phase	3 Î¦
Duty Type	S1(Continuous)
Speed	2880 rpm
Cable	3 Core Flat
Connection	DOL / Star – Delta
Temperature	< 35Â°C
pH	6.5 – 8.5
Specific Gravity	1.004 Max
Pumping Medium	Clean Water free from solids & fibre free, chemically and mechanically non aggressive

Construction Features

Motor Body	Stainless Steel
Pump Casing	FG200 / SS304
Impeller	Bronze / SS304
Shaft	SS402 / SS431
Thrust Bearing	SS/Carbon Graphite
Middle Bearing	Bronze/Carbon graphite
Mounting Standard	NEMA
Cooling Medium	Water

SPECIAL FEATURES
Designed for wide voltage fluctuations Rewindable motor portion Easy maintenance High operating efficiency Dynamically Balanced Rotors & Impellers ensure long life	Water lubricated bearings Smooth and Noiseless operations Low friction carbon thrust bearing Carbon thrust bearing for low voltage and quick start

Applications

Dimensional Drawing

Dimensional Details

S.No	Model	L	D	A	B
1	PS6M060/6	1575	140	615	960
2	PS6M075/7	1720	140	650	1070
3	PS6M075/8	1830	140	650	1180
4	PS6M100/10	2125	140	725	1400
5	PS6M030/2	975	140	455	520
6	PS6M040/2	995	140	475	520
7	PS6M040/3	1105	140	475	630
8	PS6M050/4	1335	140	595	740
9	PS6M060/5	1465	140	615	850
10	PS6M075/6	1465	140	650	960
11	PS6M100/8	1610	140	725	1180
12	PS6M050/3	1225	140	595	630
13	PS6M060/4	1355	140	615	740
14	PS6M075/5	1500	140	650	850
15	PS6M100/6	1685	140	725	960
16	PS6M100/7	1795	140	725	1070
17	PS6M125/8	1985	140	805	1180
18	PS6M175/9	2165	140	875	1290
19	PS6M200/8	2080	140	900	1180
20	PS6M200/10	2300	140	900	1400
21	PS6M060/3	1245	140	615	630
22	PS6M075/4	1390	140	650	740
23	PS6M100/5	1575	140	725	850
24	PS6M125/6	1765	140	805	960
25	PS6M150/7	1920	140	850	1070
26	PS6M150/8	2030	140	850	1180
27	PS6M175/7	1945	140	875	1070
28	PS6M050/2	1115	140	595	520
29	PS6M075/3	1280	140	650	630
30	PS6M100/4	1465	140	725	740
31	PS6M125/5	1655	140	805	850
32	PS6M150/6	1810	140	850	960
33	PS6M175/8	2055	140	875	1180

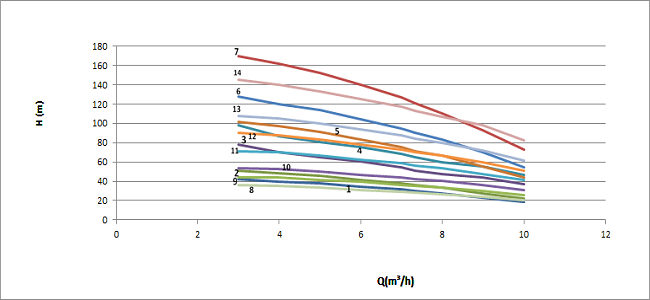

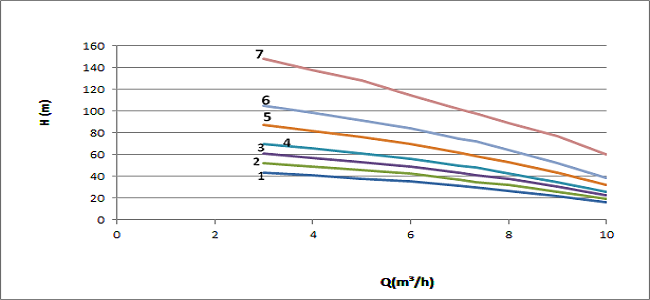

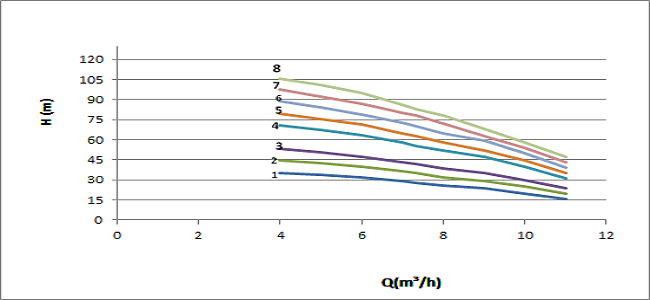

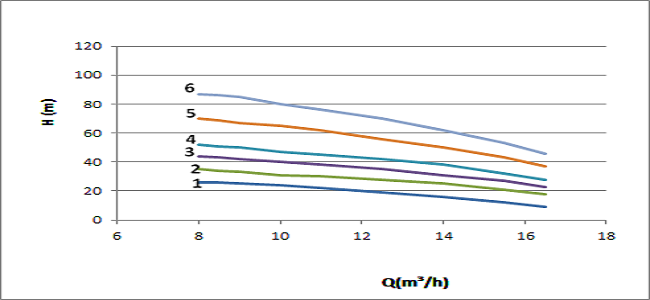

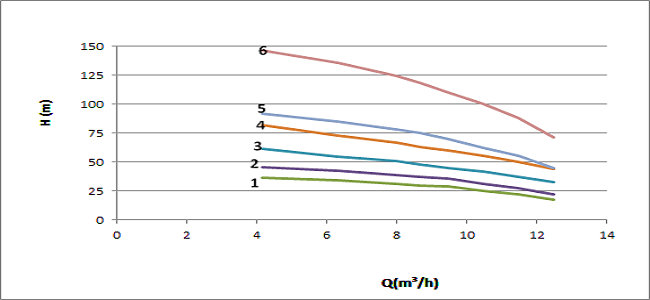

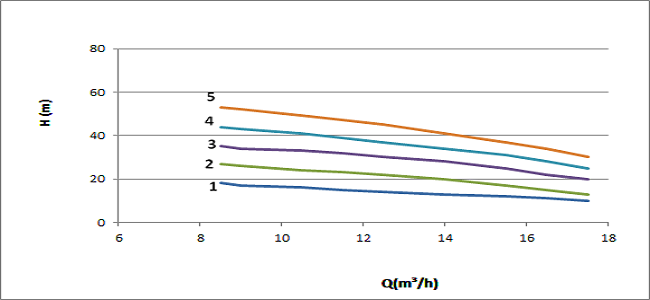

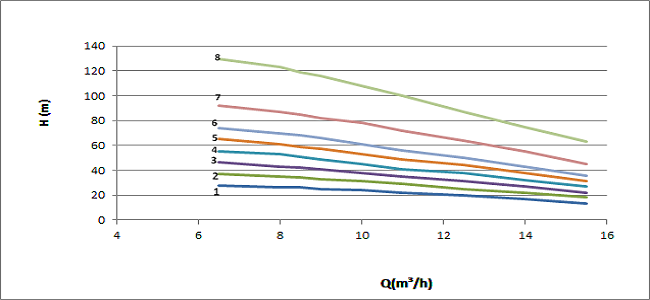

Performance Curve

Performance Table

GOLDEN SERIES (250V to 380V), 2880 RPM, 50Hz, A.C. Power Supply
S.N	MODEL	kW	HP	Stage	Del	Capacity
S.N	MODEL	kW	HP	Stage	In MM	M³/hr	0	3.00	4.00	5.00	6.00	7.00	7.33	8.00	9.00	10.00	FL Current(A)
1	PS6MO 50/5G	3.7	5	5	65	H E A DI NM E T E R S	49	42	40	37.9	34	31.6	30	27.7	23.3	18.3	11.5
2	PS6MO 60/6G	4.5	6.0	6	65		58.8	51	48.5	45.5	41.5	38	35.7	33.3	27.8	21.9	13
3	PS6MO 75/8G	5.5	7.5	8	65		78.4	70	64.7	60.6	54.6	51	47.6	44.3	37	29.2	15.5
4	PS6M 100/10G	7.5	10	10	65		98	87	80.8	75.8	68	65	60	55.4	46.5	36.5	21.5
5	PS6M 125/12G	9.3	13	12	65		118	102	97	90.9	83	75.8	71.4	66.4	55.7	43.8	27.5
6	PS6M 150/15G	11.3	15	15	65		147	128	120	114	104.5	94.8	90	83	69.8	54.8	32
7	PS6M 200/20G	15	20	20	65		196	170	162	152	140	127	121	110	93	73	46.2
8	PS6MO 50/4G	3.7	5	4	65		40	36	35	33.2	31.2	29.2	28.5	26.7	23.9	20.6	11.5
9	PS6MO 60/5G	4.5	6.0	5	65		50	44	43.7	41.6	39.2	36.5	34.9	33.4	29.8	25.7	13
10	PS6MO 75/6G	5.5	7.5	6	65		60	54	52.5	49.9	47	43.8	42	40.1	35.8	30.9	15.5
11	PS6M 100/8G	7.5	10	8	65		80	71	70	66.5	62.7	58.4	55.9	53.4	47.7	41	21.5
12	PS6M 125/10G	9.3	12.5	10	65		100	90	87.5	83.1	78.4	73	70	66.8	59.6	51.4	27.5
13	PS6M 150/12G	11.3	15	12	65		120	108	105	100	94	87.6	84	80.1	71.6	61.7	32
14	PS6M 200/16G	15	20	16	65		160	145	140	133	125	117	112	107	95	82	46.2

PREMIUM SERIES (180V to 400V), 2880 RPM, 50Hz, A.C. Power Supply
S.N	MODEL	kW	HP	Stage	Del	Capacity
S.N	MODEL	kW	HP	Stage	In MM	m³/hr	0	3.00	4.00	5.00	6.00	7.00	7.33	8.00	9.00	10.00	FL Current(A)
1	PS6MO50/5P	3.7	5	5	65	HEAD IN METERS	51	43.7	41.1	38.2	35.8	31.2	30	26.8	21.7	16.1	11.85
2	PS6MO60/6P	4.5	6	6	65		61.2	52.4	49.3	45.9	42.6	37.4	35	32	26.1	19.3	14.2
3	PS6MO75/7P	5.5	7.5	7	65		71.4	61.2	57.5	53.5	49	43.6	40.7	37.5	30.4	22.6	17.2
4	PS6MO75/8P	5.5	7.5	8	65		81.6	69.9	65.7	61.2	56	50	48	42.8	34.8	25.8	17.2
5	PS6M100/10P	7.5	10	10	65		102	87.4	82.2	76.5	70	62	59	53.5	43.4	32.2	23
6	PS6M125/12P	9.3	13	12	65		122	105	98.6	91.8	84	74.8	72	64.2	52.1	38.7	29.6
7	PS6M150/15P	11.3	15	15	65		148	138	128	115	102	938	89	77	60	40	34

S.N	MODEL	kW	HP	Stage	Del	Capacity
S.N	MODEL	kW	HP	Stage	In MM	M³/hr	0	4.00	5.00	6.00	7.00	7.33	8.00	9.00	10.00	11.00	FL Current(A)
1	PS6MO50/4P	3.7	5	4	65	HEAD IN METERS	41	35.4	33.6	31.6	29.3	28	26	24	19.9	15.7	11.85
2	PS6MO60/5P	4.5	6	5	65		51.3	44.3	42.2	39.5	36.6	35	32	29.4	24.9	19.6	14.2
3	PS6MO75/6P	5.5	7.5	6	65		61.5	53.1	50.4	47.4	43	42	38.5	35	30	24	17.2
4	PS6M100/8P	7.5	10	8	65		82	70.8	67.2	63.2	58	55.5	52	47	39.8	31.4	23
5	PS6M125/09P	9.3	13	9	65		92.3	79.7	75.6	71.1	65	63	58	52	44.8	35.3	29.6
6	PS6M125/10P	9.3	13	10	65		103	88.6	84.1	79	73	70	65	59	49.8	39	29.6
7	PS6M150/11P	11.3	15	11	65		113	97.4	92.5	86.9	80	78	72	63	54	43	34
8	PS6M150/12P	11.3	15	12	65		123	106	101	94.8	86	83	78	68	58	47	34

STANDARD SERIES at 380V (-15% to +6%),2880 RPM, 50Hz, A.C.Power supply
S.N	MODEL	kW	HP	Stage	Del	Capacity
S.N	MODEL	kW	HP	Stage	In MM	M³/hr	0	3.50	4.00	5.00	6.33	8.00	8.67	9.50	10.50	FL Current(A)
1	PS6MO30/3	2.2	3	3	65	H E A DI NM E T E R S	28.5	26	25.8	24.5	22	20	19.1	18	14	7
2	PS6MO50/5	3.7	5	5	65		47.4	44.0	43	41	37	33	32	28	23	10.9
3	PS6MO60/6	4.5	6	6	65		57	52	51	49	45	40	38	36	32	13.1
4	PS6MO75/7	5.5	7.5	7	65		66	61	60	57	51	46	45	41	32	15.5
5	PS6MO75/8	5.5	7.5	8	65		76	69	68	66	58	53	51	47	37	15.5
6	PS6MO100/10	7.5	10	10	65		95	88	86	82	74	66	64	58	46	21.2
7	PS6MO125/12	9.3	12.5	12	65		114	104	103	98	89	80	76	72	60	27.3
8	PS6MO150/15	11.3	15	15	65		143	135	131	123	112	100	95	84	65	31.6
9	PS6MO200/20	15	20	20	65		190	171	170	162	148	133	126	114	93	43.6
10	PS6MO250/25	18.5	25	25	65		238	222	218	206	186	166	160	150	116	54

S.N	MODEL	kW	HP	Stage	Del	Capacity
S.N	MODEL	kW	HP	Stage	In MM	M³/hr	0	4.17	6.33	8.00	8.67	9.50	10.50	11.50	12.50	FL Current(A)
1	PS6MO50/4	3.7	5	4	65	HEAD IN METERS	41	36.6	34	31.1	29.4	28.5	25	22	17.8	10.9
2	PS6MO60/5	4.5	6	5	65		51.2	45.7	42.5	39	37.5	35.6	31.3	27.5	22.4	10.9
3	PS6MO75/6	5.5	7.5	6	65		61.5	54.9	50.8	48	45	42	37.5	33	26.8	15.5
4	PS6M100/8	7.5	10	8	65		82	73	67	63	60	55	50	44	36	21.2
5	PS6M125/10	9.3	12.5	10	65		103	91.4	85	77.8	75	70	62.5	55	44.8	27.3
6	PS6M200/16	15	20.0	16	65		164	146	136	124	118	110	100	88	71	43.6

S.N	MODEL	kW	HP	Stage	Del	Capacity
S.N	MODEL	kW	HP	Stage	In MM	M³/hr	0	6.50	8.00	8.50	9.00	10.00	11.00	12.50	14.00	15.50	FL Current(A)
1	PS6MO50/3	3.7	5	3	80	HEAD IN METERS	32	27.8	26	26	25	24	22	20	17	13	10.9
2	PS6MO60/4	4.5	6	4	80		42	37	35	34	33	31	29	25	22	18	13.1
3	PS6MO75/5	5.5	7.5	5	80		53	46.3	43	42	41	38	35	31	27	22	15.5
4	PS6M100/6	7.5	10	6	80		63	55.5	53	51	49	45	41	38	32	27	21.2
5	PS6M100/7	7.5	10	7	80		74	65	61	59	57	53	49	44	38	31	21.2
6	PS6M125/8	9.3	13	8	80		84	74	70	68	66	61	56	50	43	36	27.3
7	PS6M150/10	11.3	15	10	80		105	92	87	85	82	78	72	64	55	45	31.6
8	PS6M200/14	15	20	14	80		147	130	123	119	116	108	100	87	75	63	43.6

S.N	MODEL	kW	HP	Stage	Del	Capacity
S.N	MODEL	kW	HP	Stage	In MM	M³/hr	0	8.00	8.50	9.00	10.00	11.00	12.50	14.00	15.50	16.50	FL Current(A)
1	PS6MO60/3	4.5	6	3	80	HEAD IN METERS	32	26	26	25	24	22	19	16	12	9	13.1
2	PS6MO75/4	5.5	7.5	5	80		43	35	34	33	31	30	28	25	21	18	15.5
3	PS6M100/5	7.5	10	5	80		54	44	43	42	40	38	35	31	27	23	21.2
4	PS6M125/6	9.3	13	6	80		65	52	51	50	47	45	42	38	32	28	27.3
5	PS6M150/8	11.3	15	8	80		86	70	69	67	65	62	56	50	43	37	31.6
6	PS6M200/10	15	20	10	80		108	87	86	85	80	76	70	62	53	46	43.6

S.N	MODEL	kW	HP	Stage	Del	Capacity
S.N	MODEL	kW	HP	Stage	In MM	M³/hr	0	8.50	9.00	10.50	11.50	12.50	14.00	15.50	16.50	17.50	FL Current(A)
1	PS6MO50/2	3.7	5	2	80	HEAD IN METERS	22	18	17	16	15	14	13	12	11	10	10.9
2	PS6MO75/3	5.5	7.5	3	80		33	27	26	24	23	22	20	17	15	13	15.5
3	PS6M100/4	7.5	10	4	80		44	35	34	33	32	30	28	25	22	20	21.2
4	PS6M125/5	9.3	12.5	5	80		55	44	43	41	39	37	34	31	28	25	27.3
5	PS6M150/6	11.2	15	6	80		66	53	52	49	47	45	41	37	34	30	31.6
