Centrifugal Pumps > Multi Stage
Have Question?
Centrifugal pumps create a vortex of water with the pressure increasing towards the outside of the impeller, they are harder to install and instructions should be read carefully, the benefits of a centrifugal pump are a greater volume of water at the same pressure as a regenerative pump and quieter in operation.
|
CONSTRUCTION FEATURES
|
 |
| PUMP CASTING | GREY IRON CASTING |
| IMPELLER | GUNMETAL / CI |
| SHAFT | EN8 / SS 410 |
| MOTOR BODY | LUMINIUM EXTRUDED / CI |
| MECHANICAL SEAL | HIGH ALUMINA CERAMIC AND GRAPHITE |
|
TECHNICAL FEATURES
|
|
| PUMPING MEDIUM | CLEAR WATER FREE FROM SOLIDS,CHEMICALLY AND MECHANICALLY NON – AGGRESSIVE |
| MAX.SUC HEAD | 7 MTRS |
| LIQUID TEMPERATURE | < 40° C |
| PH VALUE | 6.85 TO 8.5 |
| RATING | CONTINIOUS (S1) |
| INS.CLASS | “B” |
| PROTECTION | IP 54 |
| SPEED | 2800 rpm |
| MOTOR DESIGN | TEFC |
| STD.VOLTAGE | 240V TO 220V / 50HZ |
Applications
Dimensional Drawing
Dimensiona Details – Multi Stage
| Model | L | B | H | A | B | C | D | E |
| PMD 100 | 330 | 184 | 217 | 90 | 127 | 80 | 93 | 148 |
| PMD 103 | 330 | 184 | 217 | 90 | 127 | 80 | 93 | 148 |
| PMD 150 | 377 | 205 | 235 | 95 | 140 | 80 | 100 | 170 |
| PMD 153 | 377 | 205 | 235 | 95 | 140 | 80 | 100 | 170 |
| PMD 200 | 424 | 217 | 225 | 98 | 127 | 78 | 110 | 167 |
| PMD 203 | 424 | 217 | 225 | 98 | 127 | 78 | 110 | 167 |

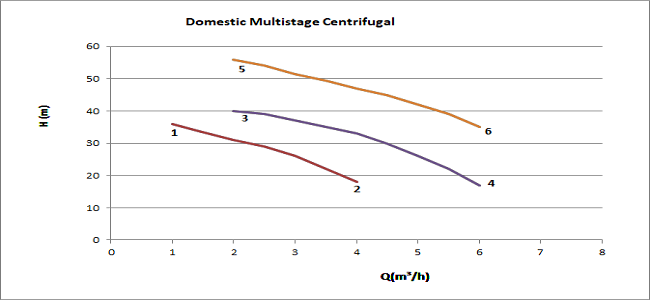

Performance Curve
Performance Table – Multi Stage
| Sl.No | MODEL NAME | HP/kW | Pipe Size | Â | DISCHARGE IN Q (m3/h) | ||||||||||||||||||
| 1 | 1.4 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 6.5 | ||||||||||||
| 1 | PCB100/3225 | 1.0/0.75 | 32*25 | HEAD IN METERS | 36 | 34 | 31 | 29 | 26 | 22 | 18 | – | – | – | – | – | |||||||
| 2 | PCB103/3225 | 1.0/0.75 | 32*25 | 36 | 34 | 31 | 29 | 26 | 22 | 18 | – | – | – | – | – | ||||||||
| 3 | PCC120/3225 | 1.5/1.1 | 32*25 | – | – | 40 | 39 | 37 | 35 | 33 | 30 | 26 | 222 | 17 | – | ||||||||
| 4 | PCC1203/3225 | 1.5/1.1 | 32*25 | – | – | 40 | 39 | 37 | 35 | 33 | 30 | 26 | 22 | 17 | – | ||||||||
| 5 | PCD165/3225 | 2.0/1.5 | 32*25 | – | – | 56 | 54 | 51.5 | 49.5 | 47 | 45 | 42 | 39 | 35 | – | ||||||||
| 6 | PCD1653/3225 | 2.0/1.5 | 32*25 | – | – | 56 | 54 | 51.5 | 49.5 | 47 | 45 | 42 | 39 | 35 | – | ||||||||
